Exposure 5510 monoblock power amps
Exposure Electronics’ new 5510 Series represents the pinnacle of Exposure engineering, bringing greater scale, grip and refinement to every part of the musical performance. Designed as a true flagship family, the series’ components share a calm authority that lets your music unfold with effortless clarity and control. The presentation is spacious, dynamic and beautifully composed, revealing subtle textures while delivering the drive and impact that define real high-end sound. Every element of the design works quietly in the background to reduce noise, enhance stability and preserve the natural flow of the recording.
The 5510 mono power amplifiers, Exposure’s latest addition, are the pinnacle of this series. Paired with the 5510 preamplifier, they form the ultimate three-chassis amplifier system, offering a level of transparency, power and musical engagement that stands at the very top of the Exposure range. They are built for listeners who want the purest connection to their music.
Key features
Power supply: Equipped with a large, custom-made toroidal transformer and high-quality screw-terminal smoothing capacitors.
Circuitry: All-bipolar transistor design utilising carefully selected components and fully DC-coupled topology. Built to drive difficult, low-impedance loudspeaker loads effortlessly.
Protection: Includes a non-invasive overload protection circuit and a thermal trip.

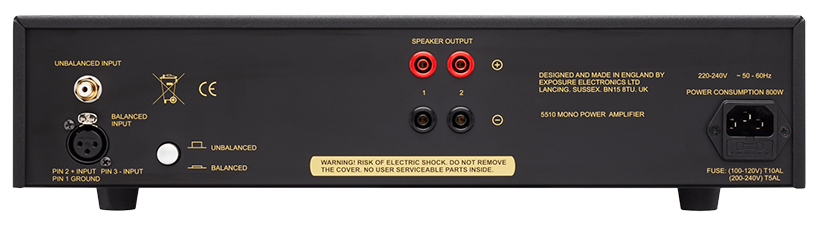

Connectivity: Balanced and unbalanced inputs. Bi-wire speaker outputs using high quality shrouded 4mm sockets.
Chassis: High-grade, resonance-controlling all aluminum casework, available in black.
Warranty: Backed by a 3-year manufacturer’s guarantee.
Specifications
Power output: 200 W into 8 Ω, 370 W into 4 Ω
Input impedance: 75 kΩ @ 1 kHz (unbalanced input)
Frequency response: –3 dB at 52 kHz, ref. 1 kHz (unbalanced input)
Total harmonic distortion: <0.015% @ 1 kHz, 200 W into 8 Ω, <0.005% @ 1 kHz, 100 W into 8 Ω
Signal‐to‐noise ratio: >120 dB (A-weighted), ref. 200 W into 8 Ω, >100 dB (A-weighted), ref. 1 W into 8 Ω
Mains supply: 110/120 V or 220/240 V, 50/60 Hz (factory set)
Power consumption: <800 VA, 8 Ω load
Dimensions: 440mm (w) × 115mm (h) × 300mm (d)
Net weight: 14 kg
Pricing & availability
The Exposure 5510 mono power amplifier is available now, priced at £7,300 (incl. VAT) per pair.
